Integrating tweeters into your audio system, whether it’s a home theater setup or a car audio upgrade, significantly enhances high-frequency clarity and overall sound quality. However, improper wiring can lead to poor performance, muffled sound, or even damage to your components. Therefore, a precise and methodical approach to tweeter installation is paramount. This process, while seemingly straightforward, requires attention to detail and an understanding of basic electrical principles. Before commencing, ensure you have the necessary tools, including wire strippers, crimpers, solder (and a soldering iron if you prefer that method), and appropriate gauge wiring. Moreover, familiarize yourself with the tweeter’s specifications – specifically the impedance, which dictates the appropriate wiring configuration and ensures optimal power handling. Neglecting these preliminary steps can lead to frustrating troubleshooting later on, potentially involving replacing damaged components. Consequently, careful planning and preparation are integral to a successful tweeter installation, maximizing your audio investment and delivering a superior listening experience. Understanding the various wiring configurations, such as parallel and series connections, is also critical, as these choices directly influence the overall impedance of the system and its compatibility with your amplifier. Furthermore, pay close attention to polarity; incorrect wiring will result in a phase cancellation, dramatically reducing sound quality and possibly causing damage to the tweeter.
Following the preparatory steps, we can now delve into the actual wiring process. Firstly, it’s crucial to determine the appropriate wiring method for your specific setup. This is largely dictated by the impedance of your tweeter and the power output of your amplifier. For instance, if you’re working with multiple tweeters, you might opt for a parallel connection to reduce the overall impedance, ensuring compatibility with your amplifier. Conversely, a series connection would increase the impedance, which may be necessary in certain situations. However, it’s important to note that incorrect impedance matching can lead to distortion or even damage to your amplifier or tweeters. Therefore, consulting the specifications of both your amplifier and tweeters is crucial to avoid such issues. Once you’ve determined the appropriate wiring configuration, carefully strip the ends of your speaker wires to expose the copper strands. Avoid stripping too much insulation, as this can compromise the connection. Next, create a secure and reliable connection using either crimping or soldering techniques. Crimping offers a fast and efficient method, but soldering generally creates a more robust and long-lasting connection, particularly in environments prone to vibration, like car audio installations. After establishing the connections, carefully secure the wires to prevent accidental disconnections or short circuits. Lastly, always double-check your work before powering on your system to avoid any potential damage.
Finally, after completing the wiring, the testing phase is vital to ensure proper functionality and performance. Before connecting your system to the main power source, it’s advisable to perform a visual inspection, scrutinizing all connections for any signs of loose wires or potential short circuits. Once satisfied with the visual assessment, carefully connect the system to the amplifier and carefully power it on. Begin by playing a test tone or a known audio track, listening attentively for any unusual sounds, such as distortion, buzzing, or crackling. These indications often point to an improperly wired connection or a faulty component. Furthermore, pay close attention to the overall sound quality, comparing it to your previous setup if possible. If the high frequencies seem weak or absent, this could indicate a phase issue, potentially caused by incorrect polarity. If you encounter any problems, systematically revisit each connection, ensuring all the wires are correctly connected and that the polarity is correct. Remember, patience and a methodical approach are crucial throughout this process. Through careful planning, precise wiring techniques, and thorough testing, you can seamlessly integrate your tweeters, significantly enhancing the overall auditory experience. By following these detailed instructions, you can confidently enjoy the benefits of a high-quality, well-balanced audio system.
Assessing Your Tweeter and Crossover Network
Assessing Your Tweeter
Before you even think about connecting wires, it’s crucial to thoroughly understand your tweeter and its specifications. This seemingly simple step prevents potential damage and ensures optimal sound quality. Let’s break down what you need to examine.
Understanding Tweeter Impedance
Impedance, measured in ohms (Ω), represents the tweeter’s resistance to electrical current. This is a critical specification, as mismatching impedance with your amplifier can lead to distortion or even damage to your amplifier or tweeter. Most tweeters operate within a range of 4 ohms to 8 ohms. You’ll find this information printed on the tweeter itself, often on a sticker or etched into the component’s body. If you can’t locate it there, consult the manufacturer’s specifications or the documentation that came with your speaker system.
Identifying Tweeter Terminals
Tweeters typically have two terminals, often marked with a positive (+) and a negative (−) symbol, or colored differently (e.g., red and black). These terminals may be screw-type, spring-clip, or push-type. Carefully examine the terminals to determine their type and ensure they’re in good condition. Loose or corroded terminals can result in poor connections and a compromised audio signal. Clean any corrosion with a contact cleaner specifically designed for electronics. If the terminals are damaged, replacement might be necessary.
Power Handling Capacity
Every tweeter has a maximum power handling capacity, indicating the amount of power it can safely handle without sustaining damage. Exceeding this limit can easily lead to blown tweeters and, in some cases, damage to other components in your sound system. This information, usually expressed in watts (W) (RMS or peak), is also typically found on the tweeter itself or in its specifications. Always operate your tweeter within its safe power range. It’s better to slightly underrate the power than to risk damage.
Checking for Physical Damage
Before wiring, give your tweeter a visual inspection. Look for any signs of physical damage, such as cracks in the dome, loose wires, or dents in the frame. Even minor damage can affect performance or render it unusable. If you find any issues, repair or replace the tweeter as needed before proceeding.
| Tweeter Specification | Typical Value/Location | Importance |
|---|---|---|
| Impedance | Printed on the tweeter or in documentation; 4-8 ohms | Critical for amplifier compatibility; prevents damage |
| Power Handling | Printed on the tweeter or in documentation; varies widely | Avoid exceeding this limit to prevent damage |
| Terminal Type | Screw, spring clip, push type | Determines the wiring method |
Connecting to the Crossover Network
The crossover network is the brain of your speaker system, responsible for dividing the audio signal and sending the appropriate frequencies to each driver (woofer, midrange, and tweeter). Understanding its connection points is vital.
Most crossover networks have clearly labeled terminals for each driver. These terminals are usually marked as “Tweeter + " and “Tweeter -”. Connect the positive terminal of your tweeter to the “Tweeter +” terminal on the crossover and the negative terminal to the “Tweeter -”. Follow the manufacturer’s instructions carefully, as the connection points may vary depending on the design. Secure the connections to ensure optimal audio quality.
Gathering Necessary Tools and Materials
1. Essential Tools
Before you begin wiring your tweeter, gather the necessary tools to ensure a smooth and efficient installation. A good quality soldering iron is paramount, ideally one with a temperature-adjustable setting allowing you to precisely control the heat applied to your connections. This prevents damage to delicate components. A set of appropriately sized soldering tips is also essential, ensuring you have the right size for both the tweeter terminals and the wire gauge you’ll be using. A reliable solder sucker or braid will be invaluable for cleaning up any solder bridges or removing excess solder for neat and professional connections. Tweezers with fine tips will provide precise manipulation of small components during the wiring process, helping to prevent accidental shorts or damage.
Furthermore, wire strippers are crucial for cleanly preparing the ends of your speaker wire. Choose a quality pair that provides clean cuts without damaging the wire strands. A multimeter is a highly recommended tool to verify your connections and ensure proper polarity. This simple check will save you a lot of potential headaches later. Finally, a good quality Phillips head screwdriver might be needed depending on your tweeter mounting method, or if you’re working with a crossover network that needs to be assembled or installed.
2. Selecting the Right Wiring and Components
Choosing the right materials is just as important as having the right tools. The most crucial component is the speaker wire itself. You’ll want to select a gauge appropriate for your tweeter’s power handling capabilities. Using wire that is too thin risks overheating and potential damage, while thicker wire, although seemingly safer, might be unnecessarily bulky and difficult to work with. Consult your tweeter’s specifications to determine the recommended wire gauge. High-quality, oxygen-free copper (OFC) speaker wire is the preferred choice as it offers superior conductivity and minimizes signal loss. Consider using stranded wire rather than solid core; stranded wire is more flexible, easier to work with, and less prone to breakage.
Next, you’ll need to consider the solder. Rosin-core solder is generally recommended due to its cleaner flux properties, reducing the risk of corrosive residue and providing stronger, more reliable connections. Make sure your solder has the right diameter for your soldering iron and application, a finer gauge is better for delicate tweeter work. Always make sure to have enough solder on hand to complete your wiring.
If your tweeter is part of a crossover network, ensure you have the correct terminals and connectors for connecting to the crossover. These are usually readily available from electronics suppliers or online. If necessary, you may also need heat shrink tubing to insulate any exposed wires and protect them from moisture or damage. Use tubing appropriate for the diameter of the wire, to ensure a clean and safe finish. Finally, it might be helpful to have some electrical tape as an additional layer of insulation for added protection. Though not strictly necessary, it contributes to a more robust and professional-looking installation. Properly prepared materials significantly contribute to a successful and long-lasting connection.
| Component | Specifications/Considerations |
|---|---|
| Speaker Wire | Appropriate gauge (consult tweeter specifications), oxygen-free copper (OFC), stranded wire preferred |
| Solder | Rosin-core, appropriate diameter |
| Heat Shrink Tubing | Appropriate diameter for wire size |
| Terminals/Connectors | As needed for crossover integration |
3. Safety Precautions
Remember safety first! Always disconnect the power source before handling any electrical components. Soldering irons get very hot; take appropriate precautions to prevent burns. Proper ventilation is advisable while working with solder fumes, which should always be handled in a well-ventilated space. Be mindful of sharp tools and take your time to avoid accidents and potential damage to your equipment.
Preparing the Wiring
Before you even think about touching your tweeter, gather your tools and materials. This will make the process much smoother and less frustrating. You’ll need a small Phillips head screwdriver (or whatever type of screw your tweeter uses), wire strippers, solder and a soldering iron (or crimp connectors if you prefer a solderless method), electrical tape, and of course, the tweeter itself and the appropriate gauge speaker wire.
Making the Connections
Connecting the tweeter involves carefully joining the wires from your amplifier or crossover network to the tweeter’s terminals. Pay close attention to polarity (+ and -). Connecting the wires incorrectly can lead to sound cancellation or damage to your components. Most tweeters will have clearly marked positive (+) and negative (-) terminals, usually indicated with a “+” symbol or a red wire lead. The wire coming from your amplifier or crossover will also be clearly marked. Ensure that these polarities match exactly during the connection process.
Soldering vs. Crimping: A Detailed Look at Connection Methods
Now, let’s delve deeper into the two most common methods for connecting your tweeter wires: soldering and crimping. Both are effective, but each has its own advantages and disadvantages.
Soldering: The Traditional Approach
Soldering creates a strong, reliable connection that’s less prone to vibration-induced failure. This is especially crucial in car audio systems where vibrations are commonplace. The process involves carefully applying solder to the junction of the bare wire ends and the tweeter terminal. Ensure the connection is clean and well-tinned (meaning the solder has fully bonded to the wire and terminal). Excessive solder can be detrimental, so practice good technique. Always use rosin-core solder designed for electronics as it produces less residue than acid-core solder. Once soldered, allow the joint to cool completely before moving on. Use heat-shrink tubing over the soldered connection to offer added insulation and protection from damage or shorting.
Crimping: The Quick and Easy Method
Crimping uses specialized crimp connectors and a crimping tool to securely fasten the wires to the tweeter terminals. While quicker than soldering, it requires the proper tools and practice to ensure a reliable connection. Poorly crimped connections can easily come loose and cause intermittent sound issues or even complete silence. Make sure to select connectors that match your wire gauge, and completely close the connector using the crimping tool. There should be no visible gaps in the connector and the wire should be firmly embedded.
Comparison Table: Soldering vs. Crimping
| Feature | Soldering | Crimping |
|---|---|---|
| Connection Strength | Very Strong, Durable | Strong (if done correctly), can become loose over time |
| Ease of Use | Requires practice and specialized tools | Relatively easier, but requires appropriate crimping tool |
| Cost | Lower initial cost (if you already own a soldering iron) | Higher initial cost (crimping tool and connectors) |
| Time | Takes longer to complete | Faster connection process |
Choosing between soldering and crimping depends on your experience level, available tools, and personal preference. For a long-lasting, robust connection, soldering is generally recommended, but crimping offers a faster alternative if done correctly.
Securing the Wires and Finishing Touches
Regardless of whether you soldered or crimped, always secure the wires with electrical tape to prevent accidental disconnections or shorts. Neatly wrap the tape around the connection, ensuring that all exposed wires are completely covered. Finally, carefully mount your tweeter into its designated location, ensuring a snug and secure fit.
Identifying Positive and Negative Terminals
Locating the Terminals
Tweeters, like all speakers, have two terminals: positive (+) and negative (-). These terminals are where you’ll connect the wires from your amplifier or crossover. Their location varies depending on the tweeter’s design and manufacturer. Some tweeters have clearly marked “+” and “-” symbols directly on the terminals themselves, making identification straightforward. Others might use a color-coding system, commonly red for positive and black for negative. However, color codes aren’t always reliable, so it’s essential to verify. Some tweeters have terminals recessed into the speaker’s body, while others have them mounted on a visible plate or connector. Carefully examine the tweeter’s casing and surrounding area; the terminals are usually quite prominent and often located near the mounting points.
Using a Multimeter (for unmarked tweeters)
If your tweeter lacks clear markings, a multimeter is your best friend. This handy tool measures electrical properties, and in this case, we’ll use its continuity test function. Set your multimeter to the continuity mode (often symbolized by a diode icon or a bell). One probe of the multimeter will be placed on one of the tweeter’s terminals while the other will make contact with the known positive (+) lead of your amplifier’s output or crossover network. If the multimeter beeps, that terminal on the tweeter corresponds to the positive (+) lead.
Color-Coding Systems and their Limitations
While many manufacturers utilize color coding (red for positive, black for negative), it’s crucial to understand that this is not a universally adopted standard. Different manufacturers might use varying color schemes. Always visually verify for markings printed near the terminals; this is often the most reliable way of checking. Relying solely on color coding can lead to incorrect wiring, resulting in a distorted or absent sound, or even damage to the equipment. Double-check your tweeter’s documentation or manufacturer’s website if you’re unsure.
Troubleshooting Unmarked Terminals: A Detailed Guide
Let’s delve deeper into identifying unmarked terminals. If your tweeter doesn’t have clear markings or color coding, a systematic approach is essential. Firstly, carefully examine the tweeter for any tiny markings or inscriptions, often etched or printed on the back or side. These can be faint, requiring close inspection under good lighting conditions. Secondly, if there’s no indication, carefully trace the internal wires if possible (be gentle, avoid damaging internal parts), and see if they have any color coding or labeling. However, this should be done with extreme caution, as internal components can be easily damaged. Thirdly, consider the tweeter’s mounting and orientation. Some designs might indicate polarity through physical design cues. For example, the orientation of a screw terminal might subtly indicate polarity relative to the tweeter’s diaphragm position. If all else fails, using a multimeter as previously described is the most reliable and safest method, ensuring you don’t accidentally damage your tweeter. Always consult the tweeter’s specifications sheet or the manufacturer’s website before proceeding to confirm expected behavior and potential risks. Incorrect wiring can lead to several issues, including a phase shift that affects sound quality (and might seem like it has less bass) or, in extreme cases, it might damage your tweeter.
Summary Table
| Method | Description | Reliability |
|---|---|---|
| Visual Inspection | Check for “+” and “-” markings or color codes (red/black). | High (if markings are present) |
| Multimeter Continuity Test | Use a multimeter to test continuity between the tweeter terminal and a known positive source. | Very High |
| Tracing Internal Wires | Carefully inspect internal wiring for color coding (high risk of damage). | Moderate (if accessible and reliable) |
Making Secure Solder Connections (or Crimp Connections)
Soldering Tweeter Wires: A Detailed Guide
Soldering offers a robust and reliable connection for your tweeter wires. It’s a preferred method for its strength and longevity, particularly important in applications subject to vibration, like car audio systems or portable speakers. However, it does require some practice and the right tools. Let’s break down the process step-by-step to ensure a successful and safe soldering job.
Preparing Your Workspace and Components
Before you begin, gather your materials: soldering iron (25-40 watts is ideal for tweeter wiring), solder (rosin-core 60/40 lead-tin is recommended), wire strippers, a damp sponge or cleaning cloth, and optionally, some heat-resistant gloves. Clear a clean, well-lit workspace to avoid accidents. It’s crucial to ensure your tweeter’s terminals are clean and free of any oxidation or old solder. Use a small wire brush or sandpaper to clean the terminals if necessary.
Stripping the Wire Insulation
Carefully strip approximately ½ inch of insulation from the ends of your tweeter wires. Use a wire stripper appropriate for the gauge of your wire to avoid nicking the copper strands. A clean, even strip is essential for a good solder joint. Avoid fraying the strands; try to keep them neat and straight.
Applying the Solder
Heat the soldering iron tip until it’s hot enough to melt the solder readily (it should melt smoothly onto the iron). Apply a small amount of solder to the iron’s tip. Touch the heated tip to the tweeter terminal and the stripped wire simultaneously. The heat will transfer from the iron, melting the solder and causing it to flow smoothly onto the connection, creating a strong bond. Avoid using excessive solder; a small, neat bead is all that’s necessary.
Cooling and Inspection
Once the solder has cooled completely, inspect the connection visually. A good solder joint will be shiny and smooth, completely covering the wire and the terminal. If the connection looks dull, grainy, or if the solder hasn’t fully flowed onto the wire, it might be a weak joint. Carefully reheat and reapply solder as needed.
Crimping Tweeter Wires: A Quick and Simple Alternative
Crimping provides a fast, alternative way to secure connections, particularly when soldering isn’t practical or you are less experienced with soldering techniques. However, crimped connections can be prone to failure if not executed correctly. The key is to use the appropriate crimp connectors and tools, ensuring a secure, gas-tight fit.
Choosing the Right Crimp Connectors and Tools
Select crimp connectors designed for the size and type of wire you’re using. Various types are available, including insulated and non-insulated butt connectors, spade terminals, and ring terminals. You’ll also need a suitable crimping tool that’s rated for the connectors you’ve chosen. Using the wrong tool can lead to poorly formed crimps and potential connection failures.
Crimping Procedure: Step-by-Step
First, strip the wire ends to the manufacturer’s recommended length for the chosen connector. Insert the stripped wires into the crimp connector until they reach the intended stop. Next, place the connector into the crimping tool jaws, aligning the connector correctly according to the tool’s instructions. Firmly squeeze the crimping tool’s handles until the tool clicks, indicating a proper crimp. Inspect the crimp carefully for a tight, consistent connection; the wire should be firmly held within the connector, without any visible gaps.
| Crimping Tool Type | Pros | Cons |
|---|---|---|
| Ratcheting Crimper | Ensures consistent crimp, less likely to cause damage | Requires more force than a hand-held crimper |
| Hand-Held Crimper | Portable and convenient | More operator skill required, less consistent crimps possible |
Crimped connections should be inspected for tightness and ensure the insulation of the connector is properly covering the wires to prevent shorts. If the crimp is not secure and tight, redo the process to ensure a reliable connection. Remember to always use the correct size crimp connectors for your wire gauge.
Integrating the Tweeter into the Speaker System
1. Assessing Your Existing Speaker Setup
Before diving into the wiring, take stock of your current speaker system. Identify the type of crossover network (passive or active) you’re using. Passive crossovers are integrated into the speaker cabinet and handle frequency division using inductors and capacitors. Active crossovers are external and typically require more advanced wiring techniques. Understanding your existing setup is crucial for determining the correct wiring method and components.
2. Choosing the Right Crossover
The crossover network is the heart of your tweeter integration. It filters the audio signal, sending the high frequencies to the tweeter and the lower frequencies to the woofer or mid-range driver. The crossover’s frequency response should complement your tweeter’s specifications to ensure seamless sound reproduction. Selecting a crossover that matches your tweeter’s sensitivity and impedance is paramount for optimal performance. Consider factors like the slope (e.g., 6dB, 12dB, 18dB per octave) for smooth transitions between frequency ranges.
3. Selecting Appropriate Wiring
Speaker wire quality matters. Use high-quality, oxygen-free copper (OFC) wire to minimize signal loss. The gauge (thickness) of the wire should be appropriate for the length of the run and the power handling capacity of your amplifier and tweeter. Too thin a wire can lead to signal attenuation and a loss of high-frequency clarity; too thick may be unnecessary.
4. Preparing the Tweeter
Inspect your tweeter for any damage or loose connections. Make sure the terminals are clean and securely attached to the tweeter’s voice coil. Most tweeters have two terminals, positive (+) and negative (-). Properly labeling these terminals before connecting them will prevent errors and potential damage.
5. Wiring the Crossover
Connect the crossover according to the manufacturer’s instructions. This usually involves connecting the input from your amplifier, and then the outputs to both the tweeter and the woofer (or mid-range driver). Be mindful of polarity; incorrectly connecting the wires can result in out-of-phase sound and potentially damage your components. Double-check all connections before proceeding.
6. Connecting the Tweeter to the Crossover: A Detailed Guide
This step requires careful attention to detail. Incorrect wiring can result in poor sound quality or even damage to your equipment. First, identify the tweeter’s positive (+) and negative (-) terminals. These are usually clearly marked on the tweeter itself, often with a “+” and “-” symbol, or a color code (red for positive, black for negative). Next, refer to your crossover’s wiring diagram. This diagram shows where the tweeter’s positive and negative leads should be connected to the crossover’s output terminals. Usually, these terminals will also be clearly labeled. Be extremely careful to match the polarity: connecting the positive terminal of the tweeter to the negative output of the crossover will result in phase cancellation, significantly impacting the sound quality. This can lead to a significant reduction in high-frequency output and a generally dull, lifeless sound. Use your multimeter to double-check the continuity between the tweeter terminals and the crossover terminals to make sure that there is no unexpected resistance. Securely fasten all wire connections using appropriate terminal connectors (e.g., solder or crimp terminals) to prevent shorts and ensure reliable electrical contact. For solder connections, use a low-wattage soldering iron to avoid damaging the components. After you have completed the connections, carefully inspect them one more time, verifying that all the connections are correctly positioned and securely fastened. Remember, the best wiring practices will eliminate the possibility of unexpected problems.
7. Testing and Fine-Tuning
Once everything is wired, test your system carefully, starting at a low volume. Listen for any distortion or unusual sounds. Adjust the crossover settings if necessary to optimize the frequency response and ensure a smooth transition between the tweeter and other drivers. Fine-tuning may involve adjusting the crossover point or the levels of the different drivers to achieve a balanced and natural sound.
Speaker Wire Gauge and Amplifier Power Handling
| Amplifier Power (Watts RMS) | Recommended Speaker Wire Gauge (AWG) |
|---|---|
| 0-50 | 16 AWG |
| 50-100 | 14 AWG |
| 100-200 | 12 AWG |
| 200+ | 10 AWG or larger |
Testing for Proper Polarity and Functionality
Understanding Polarity
Before you even think about connecting your tweeter, understanding polarity is crucial. Tweeter polarity refers to the direction of the current flow relative to the cone’s movement. Incorrect polarity leads to sound cancellation, a weak or thin sound, and in extreme cases, potential damage to your tweeter or amplifier. It’s always a good practice to check the polarity before and after wiring, especially if you’re working with multiple tweeters or a complex system.
Visual Inspection
Many tweeters have clearly marked positive (+) and negative (-) terminals, often indicated by a plus sign and a minus sign, or different colored wires. Sometimes, a small “+” or “-” symbol might be printed on the tweeter’s frame itself. Carefully examine the tweeter for these markings. If they’re not clearly visible, consult your tweeter’s documentation or the manufacturer’s website.
Using a Multimeter for Polarity Check
A multimeter is an inexpensive and invaluable tool for checking polarity. Set your multimeter to the continuity or diode test mode. Touch one probe to the positive terminal of the tweeter and the other to the negative terminal. A positive reading (usually a beep or a low resistance reading) confirms the correct polarity markings on the tweeter.
Testing with a Simple Battery
An alternative, less precise method involves using a 1.5V battery. Gently touch the positive terminal of the battery to the positive terminal of the tweeter and the negative terminal of the battery to the negative terminal of the tweeter. The tweeter cone should move slightly outwards. If it moves inwards, you’ve connected the polarity incorrectly. Reversing the battery connections will correct this.
Connecting the Tweeter and Initial Sound Check
Once you’re confident about the polarity, connect the tweeter to your amplifier or crossover network, ensuring you observe correct polarity throughout the wiring. After securing the connections, play a test tone – ideally a swept sine wave from a test tone generator or audio software. This allows you to listen for any distortion across the frequency range of the tweeter.
Listening for Distortion or Unusual Sounds
With the test tone playing, carefully listen for any unusual sounds or distortion. Harshness, buzzing, or a lack of clarity usually suggests a problem. Make sure the volume is set at a moderate level, as playing at high volumes while trouble shooting can further damage components.
Troubleshooting and Further Investigation (Expanded Subsection)
If you encounter issues during your sound check, systematically investigate the potential causes. Here’s a detailed breakdown:
Check All Connections
Double-check all wire connections at both the tweeter and the amplifier/crossover. Loose connections or incorrect wiring are the most common culprits. Ensure that the wires are securely connected and that the polarity is consistent throughout the entire circuit. A loose connection can manifest as intermittent sound or complete silence, whereas a reversed connection causes phasing issues, resulting in a weaker or distorted sound.
Inspect for Physical Damage
Carefully examine the tweeter for any visible damage to the cone, voice coil, or surrounding structure. Even minor damage can impact the sound quality or render the tweeter inoperable. Check for any cuts, tears, or debris on the tweeter’s cone, or check the wiring for any signs of fraying or shorts.
Test with a Different Amplifier/Source
If possible, try connecting the tweeter to a different amplifier or audio source to rule out issues with your existing equipment. This helps isolate whether the problem lies with the tweeter itself or another component in your audio system. If the problem persists when using a different amplifier, it strongly indicates a fault within the tweeter itself.
Frequency Response and Crossover Settings
If the sound is weak or distorted only within a specific frequency range, the issue might be related to your crossover network settings or the frequency response of your amplifier. Consult your amplifier and crossover documentation, if applicable, and adjust the settings according to your system’s specifications. An improperly configured crossover can significantly impact the performance and sound quality of your tweeters, leading to a weak or unbalanced sound.
| Possible Problem | Troubleshooting Steps |
|---|---|
| Weak or distorted sound | Check connections, inspect for physical damage, test with different amplifier/source, check crossover settings. |
| No sound | Verify power to the amplifier, check all connections, ensure the tweeter is correctly wired into the circuit. |
| Buzzing or crackling sound | Check for loose connections, inspect wiring for damage, investigate potential interference from other components. |
Remember, patience and methodical troubleshooting are key to identifying and resolving any issues. If the problem persists after these steps, it might be time to consider replacing the tweeter.
Securing the Tweeter and Wiring in Place
Mounting the Tweeter
Before you even think about wiring, you need to securely mount your tweeter. The method will depend heavily on the tweeter’s design and your speaker enclosure. Many tweeters come with mounting brackets or flanges designed to be screwed directly into the speaker box. Ensure you pre-drill holes to avoid cracking the enclosure. Use appropriately sized screws to avoid stripping the wood or damaging the tweeter’s mounting points. If your tweeter doesn’t have a pre-attached bracket, you may need to use adhesive or create a custom mount. For custom mounts, ensure the tweeter is flush with the baffle (the front of your speaker box) for optimal sound dispersion.
Preparing the Wiring
Now let’s prepare the wires. You’ll need to strip the insulation from the ends of your speaker wire. Use wire strippers to avoid damaging the delicate inner copper strands. A good rule of thumb is to strip about ½ inch to ¾ inch of insulation, revealing enough bare wire for secure connections. Be careful not to nick the copper, as this could lead to poor contact and signal loss. If your wire has multiple strands, carefully twist them together tightly before making the connection to ensure a reliable contact. Using a small amount of solder can help keep everything solid.
Connecting the Tweeter Terminals
Most tweeters use push-terminal connectors or screw-down terminals. Push terminals are spring-loaded and generally simple to use; simply insert the bare wire into the terminal until you hear a click. Screw-down terminals usually have a small screw that tightens down on the wire, securing it in place. For screw-down terminals, ensure the wire is firmly clamped and not just loosely held by the screw.
Understanding Polarity (+ and -)
It’s crucial to maintain the correct polarity (+ and -) when wiring your tweeter. Incorrect polarity can result in phase cancellation, leading to a weaker and muddier sound. The polarity is usually marked on the tweeter itself, often with a “+” and “-” symbol, or a red and black marking. Match these markings with the corresponding polarity of your amplifier’s output wires. Generally, the positive (+) wire is red and the negative (-) wire is black.
Soldering Connections (Optional but Recommended)
While push terminals are convenient, soldering provides a more secure and reliable connection. Use a low-wattage soldering iron and rosin-core solder for the best results. Apply a small amount of solder to the wire end, making sure to melt it thoroughly and create a solid connection to the terminal. Ensure the connection is smooth and neat to prevent shorts.
Testing for Continuity
Before sealing the enclosure, use a multimeter to check the continuity of your connections. This ensures that the wire is making proper contact with both the tweeter and your amplifier. If you find a lack of continuity, revisit your connections to identify any issues. This simple check can save you significant troubleshooting time later on.
Securing the Wiring within the Enclosure (Important!)
Wire Management Techniques
Once you’ve made the connections, neatly secure the wires within the enclosure. Loose wires can cause rattling sounds, short circuits, and generally a messy interior. Use zip ties, cable clips, or hot glue (sparingly!) to keep the wires organized and away from any moving parts. It’s beneficial to leave some slack in the wires to accommodate for any future adjustments or repairs. Routing wires along the inner walls of the enclosure is often the best way to minimize their visibility.
Preventing Wire Damage
Be mindful of sharp edges or screws inside the enclosure. These can easily cut or fray the wires, causing shorts or breaks. Protect your wires by using protective sleeves or by making sure they are routed away from potential damage points. Remember, a well-organized wiring job makes future maintenance much easier. Neatly tucking the wires away is not just aesthetically pleasing, it is crucial for the longevity of your speaker system. Consider using foam or other padding to cushion wires if necessary, preventing rubbing against any sharp interior edges. Any extra wire length should be neatly coiled to prevent tangling or shorting.
Strain Relief
Pay particular attention to the point where the wires enter and exit the enclosure. These areas are prone to damage from flexing or vibration. Use strain relief techniques to reduce stress on the wires near the connection points. This could involve securing the wires with additional glue or zip ties close to the connection point. Avoid excessive pulling or bending of the wires at these points, and make sure there is enough slack so that the wires are not under tension. With a little extra care in securing and protecting the wires, you can ensure the longevity and performance of your tweeter installation.
Final Checks and Testing
Before sealing up your speaker enclosure completely, perform a final visual inspection. Make sure all connections are secure, the tweeter is firmly mounted, and all wires are neatly managed. Connect your speaker to an amplifier and test its functionality, listening carefully for any unusual noises or distortions. If everything sounds right, you are ready to seal your enclosure. If you notice any issues, revisit the wiring and mounting to address any problems.
| Wire Color | Terminal Connection | Polarity |
|---|---|---|
| Red | Tweeter (+) | Positive |
| Black | Tweeter (-) | Negative |
Troubleshooting Common Wiring Issues
Identifying the Problem: No Sound from the Tweeter
Let’s face it, a silent tweeter is frustrating. Before you start ripping apart your wiring, systematically check these points. First, ensure your amplifier is powered on and the volume isn’t muted. Next, verify that the tweeter’s crossover network (if present) is correctly connected and functioning. A faulty crossover can completely block the signal to the tweeter. If your system has multiple sources (like a CD player and Bluetooth), switch between them to eliminate a source-specific issue. A simple test involves temporarily connecting the tweeter directly to the amplifier output (using appropriate impedance matching and caution!), bypassing the crossover. If sound emerges, the problem lies within the crossover itself or the wiring leading to it. If the tweeter remains silent, we need to investigate further.
Checking for Continuity and Shorts
A multimeter is your best friend here. First, we need to check for continuity in the wiring. Set your multimeter to the continuity setting (usually a diode symbol with a tone). Touch the probes to each end of the wire leading to the tweeter. A continuous tone confirms a good connection. If you get no tone, you have a break somewhere along the wire. Trace the wire, visually inspecting for any obvious damage (cuts, frays, or kinks). Pay close attention to areas where the wire might bend sharply or rub against other components. Next, check for shorts. Set your multimeter to resistance mode (ohm symbol). A short circuit will register a very low resistance reading (close to zero). Check the resistance between the tweeter’s terminals and the chassis of your speaker. A short to the chassis is a serious problem that can cause damage to your amplifier and should be addressed immediately.
Investigating the Crossover Network
Crossover networks are crucial for directing the right frequencies to the correct speakers. They often consist of capacitors, inductors, and resistors. A faulty component can severely restrict or completely cut off the signal to the tweeter. Visually inspect the crossover for any obvious signs of damage, such as burnt components or loose solder joints. Use your multimeter to test the resistance and capacitance of each component. If you find a component out of its specified range, it needs replacing. This often requires soldering skills and careful attention to the original values. If you lack confidence in this area, consult a professional audio technician. Always disconnect the speaker wires before working on the crossover.
Incorrect Polarity
Connecting the tweeter with reversed polarity can lead to a loss of high-frequency sound or even a phase cancellation effect, making the sound thinner or less clear. It will not damage the tweeter, but it will significantly impact audio quality. Make sure the positive (+) and negative (-) terminals on the tweeter match the positive and negative terminals of the amplifier output or crossover. Usually, the terminals are clearly marked, but if there is any doubt, consult your speaker’s documentation.
Loose Connections
Poor connections are surprisingly common culprits. Inspect all connections, both on the speaker terminals, the crossover, and the amplifier outputs. Loosely connected wires can cause intermittent sound or total silence. Gently tighten any loose screws or connectors to ensure a secure contact. Consider using solder to create a more reliable connection, especially in high-vibration areas.
Faulty Tweeter
Finally, the tweeter itself might be at fault. Although less common than wiring problems, it’s possible the tweeter’s voice coil or dome has been damaged. Testing this directly requires specialized equipment, but a visual inspection might reveal any obvious physical damage to the tweeter’s diaphragm or surrounding components.
Using a Test Tone
To isolate the tweeter’s issue from the overall system, generate a high-frequency test tone (around 10kHz) using a tone generator app or audio editing software. If you still don’t get any response, then the problem is most likely the tweeter or the wiring very close to it.
Impedance Matching
Tweeter impedance needs to match the amplifier’s output impedance. Using a multimeter, measure the tweeter’s impedance. This information is usually printed on the tweeter itself. For instance, a typical value is 8 ohms. If the impedance does not match the amplifier output, you might need an impedance matching transformer or a different amplifier to prevent signal distortion and damage. A mismatch can lead to a weak signal or even damage to the tweeter. Always use the manufacturer-specified impedance values. Never guess or estimate.
Advanced Troubleshooting Techniques: Signal Tracing
For more complex setups, signal tracing can be an invaluable tool. Using an oscilloscope, you can visually inspect the signal at various points in the audio path. This allows you to pinpoint exactly where the signal is dropping or becoming distorted. For example, you can check the signal at the amplifier output, the input to the crossover, and the input to the tweeter itself. A missing signal indicates a break in the circuit, while a distorted signal suggests a problem within a specific component like the crossover or a bad wiring connection. The presence of a strong signal before the tweeter and a weak or absent signal after implies the problem resides within the tweeter itself or the wiring immediately adjacent to the tweeter’s terminals. If you’re unfamiliar with oscilloscopes, seeking assistance from a professional is advisable to avoid accidental damage to your equipment. Detailed examination of the signal using an oscilloscope enables highly precise troubleshooting. Remember that improperly used test equipment can be dangerous; exercise caution.
| Possible Problem | Troubleshooting Steps |
|---|---|
| No sound from tweeter | Check amplifier, crossover, and wiring continuity. Use a test tone. |
| Distorted sound | Check for impedance mismatch, shorts, or damaged components. |
| Intermittent sound | Check for loose connections, corroded wires, or a faulty crossover. |
Wiring a Tweeter: A Professional’s Perspective
Proper tweeter wiring is crucial for optimal audio reproduction. A poorly wired tweeter can result in diminished sound quality, reduced output, or even damage to the component itself. This process necessitates careful attention to polarity and the use of appropriate gauge wiring to ensure a robust and reliable connection. Begin by identifying the positive (+) and negative (-) terminals on the tweeter. These are often clearly marked, but consulting the manufacturer’s specifications is always recommended. Next, select a suitable gauge wire; typically, 18-22 AWG wire is sufficient for most tweeter installations. Employing wire that is too thin can lead to signal loss and distortion, while excessively thick wire can be unwieldy and impractical. Connect the wire securely to the tweeter terminals, ensuring a solid connection to prevent intermittent signal issues. Finally, carefully integrate the wired tweeter into the speaker system, paying close attention to polarity matching with the other drivers to avoid phase cancellation.
Using quality connectors and soldering the connections, where feasible, is strongly advised for improved reliability and longevity. Avoid forcing connections or using excessive pressure, as this could damage the delicate terminals of the tweeter. Regular inspection of the wiring and connections is a wise practice to prevent future issues and maintain optimal audio performance. In instances of uncertainty, consult a professional audio installer or refer to detailed instructions provided by the tweeter manufacturer. Remember, a correctly wired tweeter will significantly contribute to the overall clarity and fidelity of your audio system.
People Also Ask: Tweeter Wiring

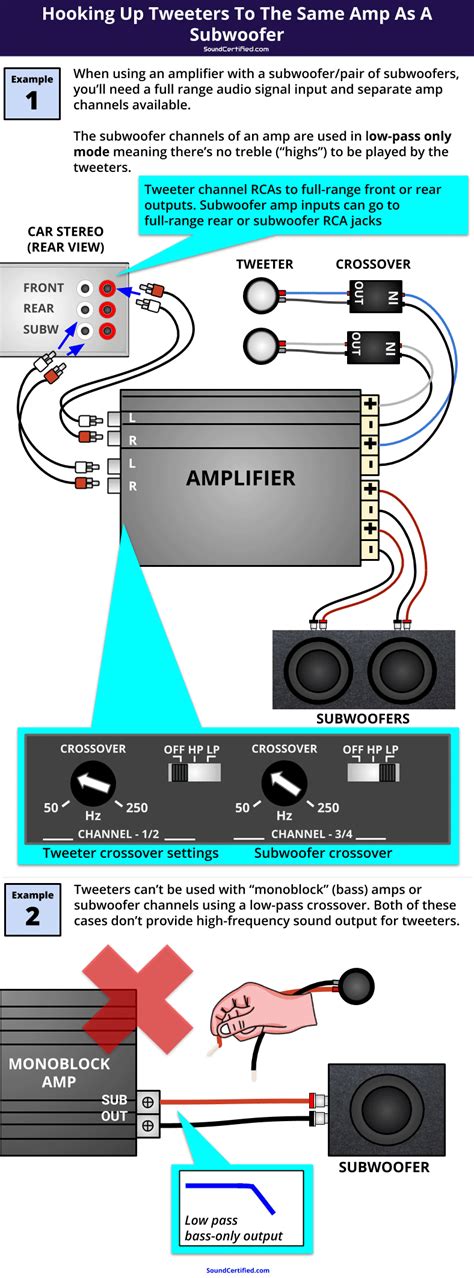

How do I wire a tweeter to an amplifier?
Understanding Polarity
Crucial to successful tweeter wiring is understanding and matching polarity. The amplifier output has positive (+) and negative (-) terminals, as does the tweeter. Connecting them incorrectly results in phase cancellation, significantly weakening or eliminating the sound. Always check the amplifier’s and tweeter’s markings and match them accordingly. Improper polarity can also damage your amplifier or tweeter under certain conditions.
Choosing the Right Wire
The gauge of wire used matters. While thicker wire is generally preferred for longer runs to minimize signal loss, excessive gauge isn’t necessary for typical applications. A wire gauge in the 18-22 AWG range is usually suitable. Using wire that’s too thin can lead to signal loss, increased resistance and potentially damage to the amplifier.
Connecting the Tweeter
Once you’ve verified polarity and chosen your wire, carefully connect the wire to the amplifier’s output and the tweeter’s terminals. Use high-quality connectors for a secure, reliable connection. Soldering, when feasible, is recommended for a long-lasting connection resistant to vibrations.
Can I wire a tweeter directly to a car stereo?
Most car stereos offer dedicated tweeter outputs, simplifying the wiring process. However, always refer to your car stereo’s manual to confirm the presence of these outputs and their specifications. Connecting directly to the woofer outputs is generally not recommended, as it might overload the tweeter. If your car stereo lacks dedicated tweeter outputs, a crossover network is necessary to filter out the lower frequencies unsuitable for the tweeter.
What happens if I wire a tweeter incorrectly?
Sound Issues
Incorrect wiring is the most frequent cause of poor tweeter performance. Out-of-phase connection leads to significant sound cancellation, reducing output and clarity. You might experience a muffled sound or a complete loss of high-frequency detail.
Component Damage
In some cases, improper wiring can cause damage to the tweeter itself or even the amplifier. This is more likely if you accidentally connect the tweeter to the wrong output or apply excessive voltage. Always double-check your connections before powering on your system.
